MIT · Interactive

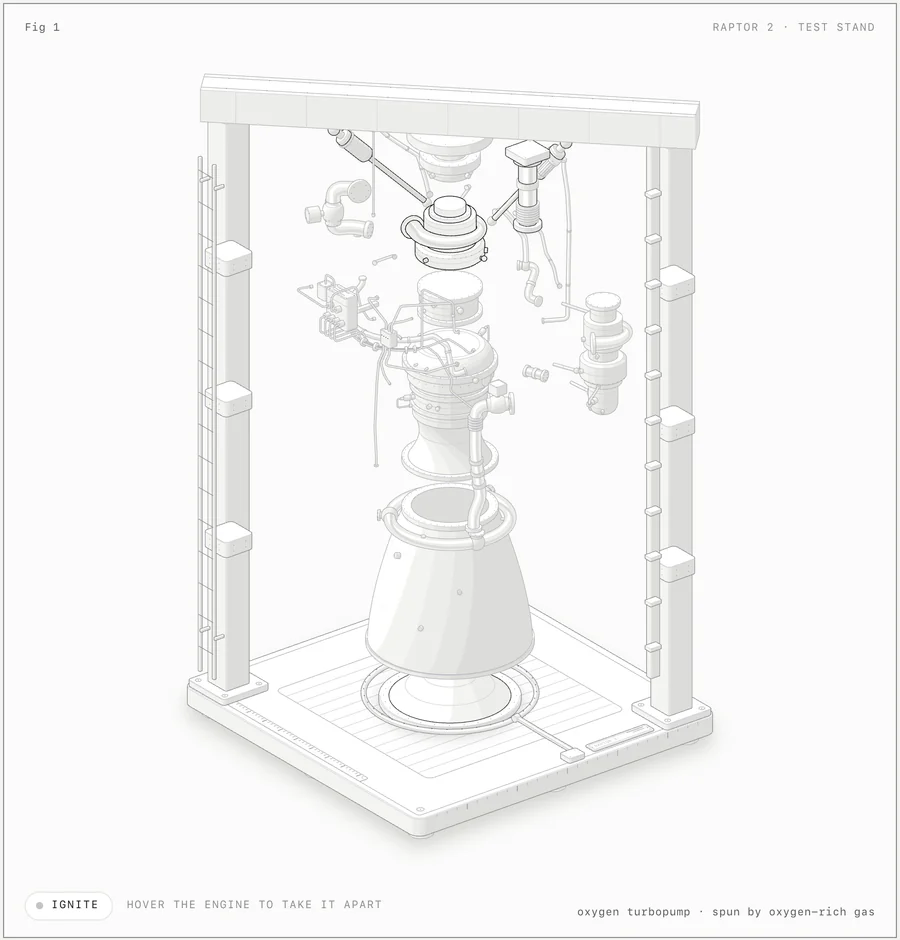

Rocket engine exploded view
Take a rocket engine apart into 11 assemblies and inspect its dense pipework, valves and test stand.
- Use
- Mechanical structures
- Mesh
- Interactive SVG + WebGL · 1.54 MB
Mechanical 3D models & interactive mechanisms
Explore five downloadable mechanical game props and four interactive Anatomy figures. Use GLB for a rotatable mesh, or open the diagram controls to inspect moving assemblies, dial behavior and measurement principles.
Last updated
9 source-attributed references · live browser previews
MIT · Interactive

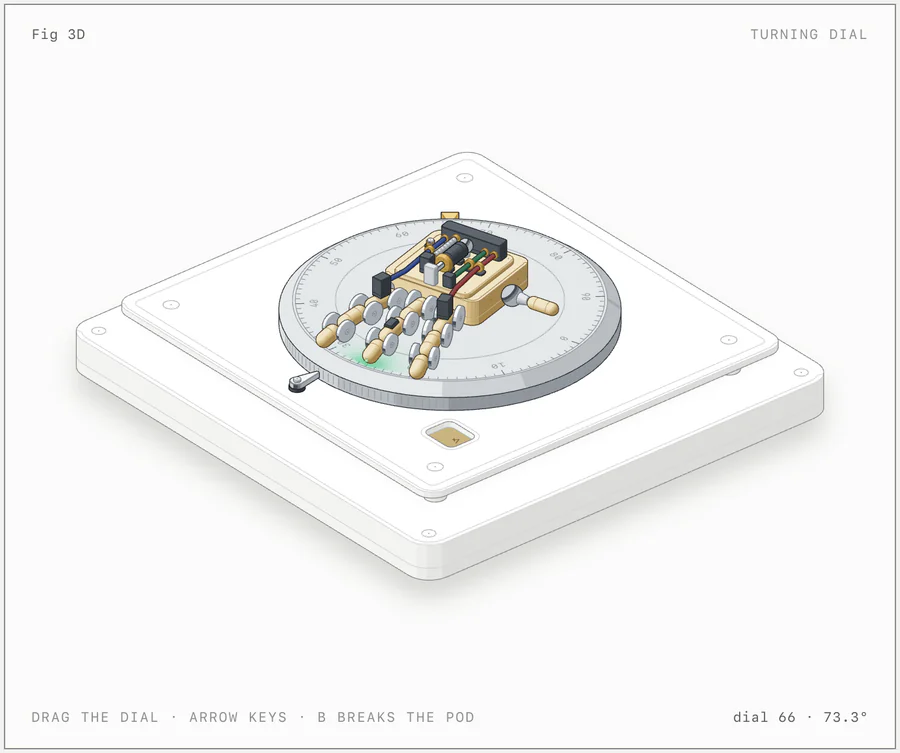

Mechanical dial and robot hand
Turn a mechanical dial in depth, lift the articulated finger and inspect the moving parts.
- Use
- Mechanical structures
- Mesh
- Interactive 3D diagram · 0.64 MB
MIT · Interactive
Dial indicator inspection rig
Slide gauge blocks under a probe and watch the mechanical dial read the changing height.
- Use
- Mechanical structures
- Mesh
- Interactive SVG · 0.13 MB
MIT · Interactive
Four-stop height comparator
A new 42-part machined comparator with four metric blocks, a sliding carriage and a live dial reading.
- Use
- Mechanical structures
- Mesh
- Interactive SVG · 0.15 MB
CC0-1.0 · Static model
Medieval ballista
A stylized siege machine with a frame, mechanical structure and separate authored parts.
- Use
- Mechanical structures
- Mesh
- 676 triangles · 0.07 MB
CC0-1.0 · Static model
Medieval catapult
A stylized siege machine with a frame, mechanical structure and separate authored parts.
- Use
- Mechanical structures
- Mesh
- 928 triangles · 0.09 MB
CC0-1.0 · Static model
Medieval trebuchet
A stylized siege machine with a frame, mechanical structure and separate authored parts.
- Use
- Mechanical structures
- Mesh
- 1,518 triangles · 0.14 MB
CC0-1.0 · Static model
Battering ram
A stylized siege machine with a frame, mechanical structure and separate authored parts.
- Use
- Mechanical structures
- Mesh
- 1,112 triangles · 0.11 MB
CC0-1.0 · Static model
Mobile siege tower
A stylized siege machine with a frame, mechanical structure and separate authored parts.
- Use
- Mechanical structures
- Mesh
- 1,598 triangles · 0.14 MB
Meshes and interactive diagrams serve different tasks
The ballista, catapult, trebuchet, ram and siege tower are real GLB scene assets. Anatomy figures are standalone HTML/SVG with interactive motion, sometimes using WebGL or its projection engine. Their displayed format tells you what you can inspect or download.
Follow the mechanism and its readout
The engine figure separates eleven assemblies. The robot hand turns with its dial. The new 42-component comparator moves four blocks under a probe; its pointer and metric readout share one illustrative model. These are visual explainers rather than calibrated instruments or manufacturing CAD.
Questions, answered.
Can Anatomy diagrams be downloaded as GLB?
The integrated Anatomy figures are HTML/SVG mechanisms. They do not provide GLB or CAD export. The five siege-machine references separately provide GLB downloads.
Does the comparator show real measurement results?
Its four blocks represent 0.6, 1.2, 1.8 and 2.4 mm on an illustrative scale, with 2 mm per needle turn. The readout explains a mechanism; it is not a calibrated measurement.
